Product Detail
DH-FLS2512
Price:
0.00
Detail
Code: 008 Series: Laser cutting machine
Spec: 7800*4000*1900mm Material: steel
Color: Blue&grey Brand: Dyhua
Model: DH-FLS2512-CP1000

The data of die making machines

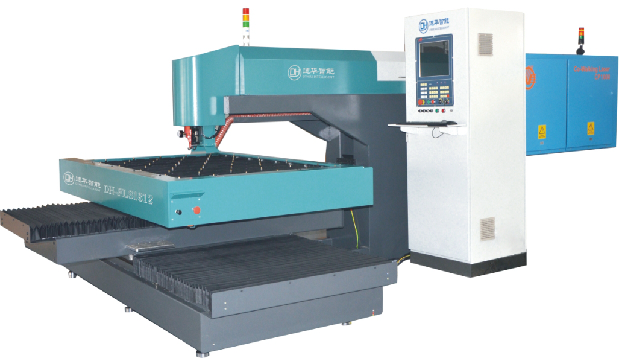

LASER DIEBOARD CUTTING MACHINE

MODEL: DH-FLS1225




item
parameters
1
Working area
2440mm*1220mm
2
Laser line path
Fixed laser line path
3
Drive style
Servo motor+high precision grounded ballscrew
4
Power supply
Three phase 380V±5%\50/60HZ\30KV
5
File format
Support PLT,DXF,AI
6
Laser power
1000W
7
Weight
1600KG
8
Location tolerance
±0.02mm
9
Repeat tolerance
<0.02mm
10
Operating mode
Follow-up&CNC
11
Control software
German PA8000 digital laser control system



Features


Imported high precision grounded ballscrew, high precision hardware, our software increase the screw pitch compensation.

The cutting head adopts electronic follow-up to guarantee the same of cutting gap.

Independent circuit case and airproof grade IP54 to reduce the damage of circuit from the smoke and dust.

German digital control system, dedicated control functions of laser cutting to produce high speed, high precision and high stabilization perfect laser cutting gap.

Create a less smoke and dust working environment with the strongly smoke and dust control system.

Fixed laser light path cutting mode to guarantee the same cutting gap.
