The data of die making machines

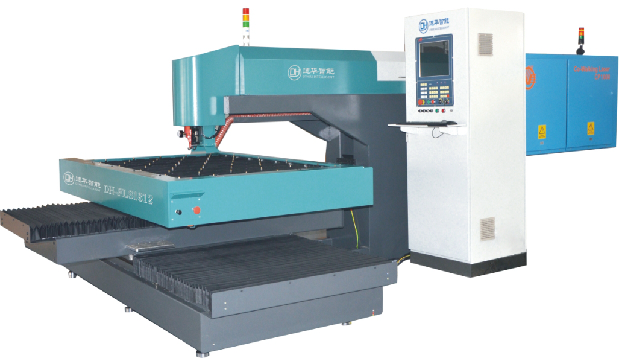

LASER DIEBOARD CUTTING MACHINE
MODEL: DH-FLS1812
| item | parameters |
1 | Working area | 1820mm*1220mm |
2 | Laser line path | Fixed laser line path |
3 | Drive style | Servo motor+high precision grounded ballscrew |
4 | Power supply | Three phase 380V±5%\50/60HZ\30KV |
5 | File format | Support PLT,DXF,AI |
6 | Laser power | 2000W |
7 | Weight | 1600KG |
8 | Location tolerance | ±0.02mm |
9 | Repeat tolerance | <0.02mm |
10 | Operating mode | Follow-up&CNC |
11 | Control software | German PA8000 digital laser control system |
Features
Imported high precision grounded ballscrew, high precision hardware, our software increase the screw pitch compensation.
The cutting head adopts electronic follow-up to guarantee the same of cutting gap.
Independent circuit case and airproof grade IP54 to reduce the damage of circuit from the smoke and dust.
German digital control system, dedicated control functions of laser cutting to produce high speed, high precision and high stabilization perfect laser cutting gap.
Create a less smoke and dust working environment with the strongly smoke and dust control system.
Fixed laser light path cutting mode to guarantee the same cutting gap.
