Dyhua Pertinax machine series
High speed,precision,multi-function
Product Detail

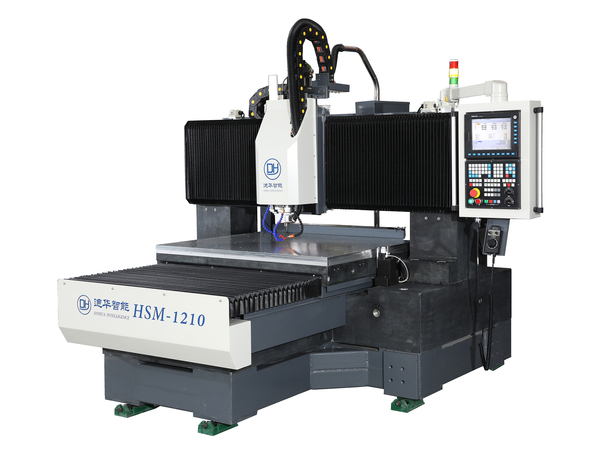

CNCHSM-1210
Price
：
￥
0.00
Detail
Spec
1200*1000mm
Color
GREY&WHITE
Brand
Dyhua
Model
CNC HSM-1210
Parameter
Unit
Value
working area
worktable size
MM
1200*1000
Travel
X axis
MM
1245
Y axis
MM
960
Z axis
MM
160
Spdinle end to table
MM
220
high speed
X/Y/Z
Meter/minute
15/15/15
Control system
WEIHONG NK300
Drive mode
X,Y,Z axis AC servo+directly connect ball screw
File format
*.G,*.nc,*.ug,*.demo,*.iso,*.eng,*.dxf,*.cut,*.plt,*.txt
Spindle
Rotate speed
RPM
6000-36000
Power
KW
6
Holder
HSK-E32
Torque
NM
2.5
Feeding speed
Fast feed rate
MM/Minute
1-15000
Milling feed rate
MM/Minute
1-10000
Manual feed rate
MM/Minute
0-5000
Tools
Tool magazine
Quantities
Piece
6
Tool change mode
Auto change
Max. tool diameter
MM
12
Max. extension of tool
MM
50
Tool-check
Repeatability
MM
0.001
Tool-check range
MM
5
Precision
Position accuracy
MM
±0.008
Repeatability
MM
±0.005
Dimension & weight
Dimension
MM
3100*2850*2200
Weight
KG
5400
Air-pressure
＞0.6MPA
Power
17KVA
Input power
three phases 380V AC 50HZ(standard)/60HZ
